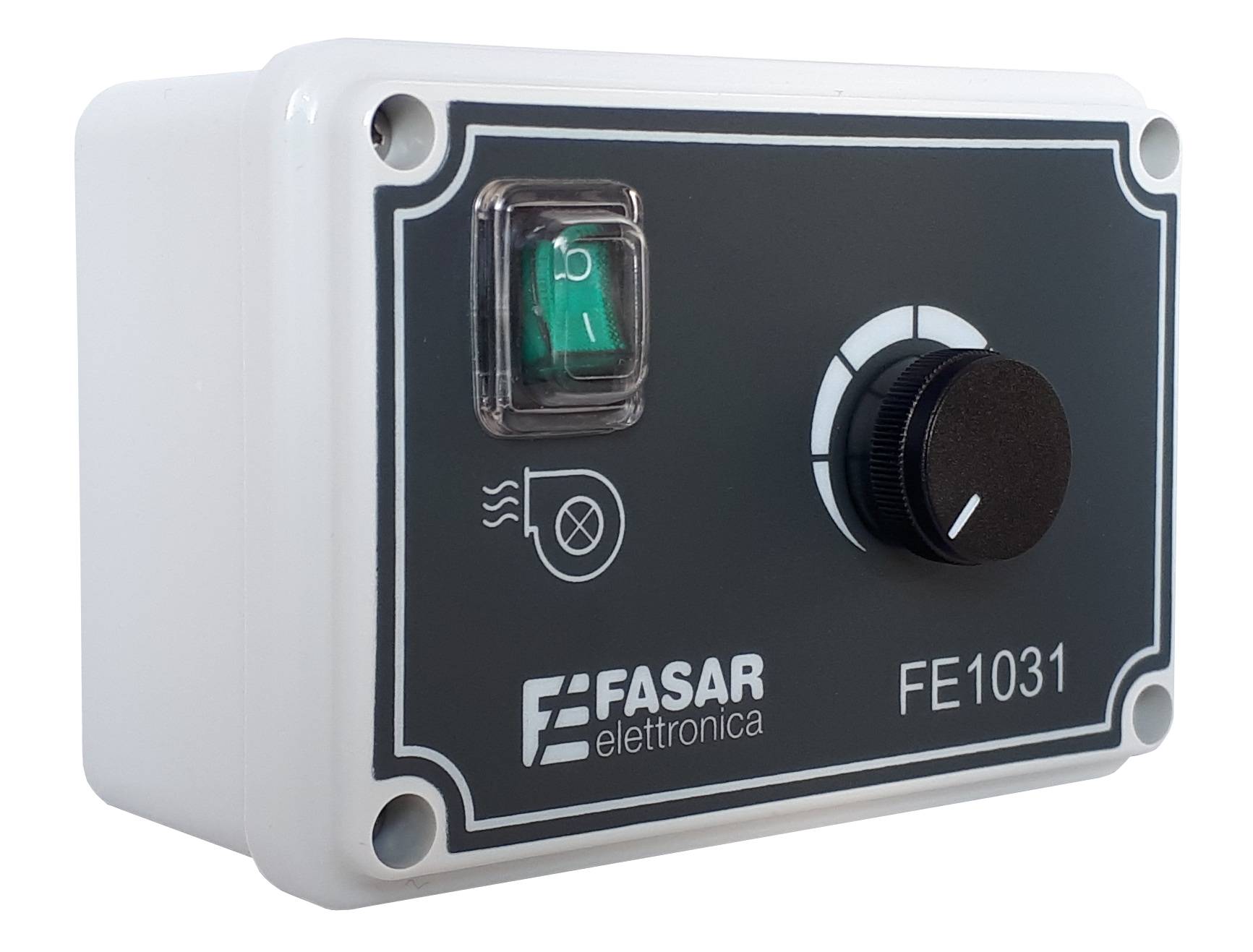

4.5A phase angle ELECTRONIC DIMMER with motor control

Regulator systems for single-phase 4.5A induction motors. Available with analog, digital and remote control.

• 220-240V

• 4,5A

• IP55

• Potentiometer

• Made in Italy.

Drives for optional motor and load control

•          Feed: 220-240Vac - 50/60Hz
•          MAXIMUM MOTOR power absorption: 4,5 A
•          Characteristics of a possible exit: 230Vac 50Hz max 1A
•          Orders: Bipolar switch and rotary knob
•          Dimensions in mm: 128x88x73
•          Weight in kg: 0,31
•          Degree of protection: IP55
•          MIN and MAX speed calibration potentiometers: Yes
•          Protective fuse: Yes
